Retain cycle in Parent Child inheritance example

September 10, 2015C/C++/Objective-C, iOSadmin

Note: ARC is enabled to demonstrate strong/weak usage of retain cycle

Parent Child example

Parent.h

@class Child;

@interface Parent : NSObject {}

@property(nonatomic, strong) Child * childPtr;

@end

Parent.m

#import "Parent.h"

#import "Child.h"

@interface Parent () {}

@end

@implementation Parent

-(instancetype)init {

if(self=[super init]) {

NSLog(@"Parent.m (init) - init");

self.childPtr = [[Child alloc] init];

}

return self;

}

-(void)dealloc{

NSLog(@"Parent.m - I'm dealloc.....my retain count is 0");

self.childPtr = nil; //retain count of 0

}

@end

Child.h

@class Parent;

@interface Child : NSObject { }

@property(nonatomic, strong) Parent * parentPtr;

@end

Child.m

#import "Child.h"

@implementation Child

@synthesize parentPtr;

-(instancetype)init {

if(self=[super init]) {

NSLog(@"Child.m (init) - init");

}

return self;

}

-(void)dealloc

{

NSLog(@"Child.m - I'm dealloc.....my retain count is 0");

}

@end

main.m

int main(int argc, const char * argv[]) {

@autoreleasepool {

Parent * fumu = [[Parent alloc] init];

fumu=nil;

NSLog(@"result");

}

return 0;

}

So we have a Parent object that has strong reference to a child Object. Upon initialization, it creates a strong reference to the child object. When we alloc and nil out the object in main, we see the appropriate actions taken:

Result:

2015-09-10 16:28:07.667 RetainCycleEx[37844:1585148] Parent.m (init) – init
2015-09-10 16:28:07.668 RetainCycleEx[37844:1585148] Child.m (init) – init
2015-09-10 16:28:07.669 RetainCycleEx[37844:1585148] Parent.m – I’m dealloc…..my retain count is 0
2015-09-10 16:28:07.669 RetainCycleEx[37844:1585148] Child.m – I’m dealloc…..my retain count is 0

Once we allocate the Parent, it in turn allocates the Child. Once we nil out the Parent, ARC garbage collects Parent object, which calls dealloc. That dealloc will set the Child object to nil, which makes ARC call Child’s dealloc so it can clean up.

Hence, everything is as expected.

Creating the retain cycle

main.m

Parent * fumu = [[Parent alloc] init];

fumu.childPtr.parentPtr = fumu; //child retains Parent.

fumu=nil;

NSLog(@"result");

Say we make the Child object have a strong reference on its parent. Thus, we’ve created a circular retain cycle. When fumu gets niled, the ARC won’t garbage collect it (aka call dealloc on Parent object) because Parent is pointed to by the child. If Parent’s dealloc method do not get called, then its child object won’t get niled, and thus, the Child object will never be cleaned up. Hence this parent and its child is now floating around and ARC will never clean them up because they have a strong reference towards each other.

Result:

2015-09-10 16:36:07.856 RetainCycleEx[38356:1588472] Parent.m (init) – init
2015-09-10 16:36:07.857 RetainCycleEx[38356:1588472] Child.m (init) – init

Where the problem lies

Child.h

@interface Child : NSObject { }

@property(nonatomic, strong) Parent * parentPtr; //problem is here

@end

The problem is that our Child object’s parent pointer, is a strong reference. If you change it to weak, and run the problem again, then the dealloc gets called.

The reason is because when pointer fumu gets niled, ARC will see NO strong references on Parent, thus, it will assume its safe to garbage collect it.

Result:

2015-09-10 16:46:56.921 RetainCycleEx[39034:1592492] Parent.m (init) – init
2015-09-10 16:46:56.922 RetainCycleEx[39034:1592492] Child.m (init) – init
2015-09-10 16:46:56.922 RetainCycleEx[39034:1592492] Child.m – I’m dealloc…..my retain count is 0
2015-09-10 16:46:56.923 RetainCycleEx[39034:1592492] Parent.m – I’m dealloc…..my retain count is 0

Non Propety example

We can also use __strong and __weak to demonstrate this. Notice that we must be in an ARC environment in order to see the effects of __strong/__weak.

We first create a pointer fumu to a Parent object. Even though no __strong is specified, it is by default __strong. Then we have a weak reference to the same Parent object. we set the fumu to nil.

At this point, even though the reference fumu is niled in the auto varaibles console, you’ll see that strongFumu and weakFumu are pointing to an object with an address. That’s because we still have a strong reference to the Parent object pointing to by strongFumu.

Then we nil out strongFumu and you’ll see both weakFumu and strongFumu both being niled. That’s because the Parent object have 0 strong references on it. Thus ARC garbage collects it and Parent object’s dealloc method gets called.

Parent * fumu = [[Parent alloc] init];

__strong Parent * strongFumu = fumu;

__weak Parent * weakFumu = fumu;

fumu = nil; //3

strongFumu = nil; //4

//3

2015-09-10 17:04:49.289 RetainCycleEx[40294:1601178] Parent.m (init) – init
2015-09-10 17:04:49.290 RetainCycleEx[40294:1601178] Child.m (init) – init

//4

2015-09-10 17:04:49.289 RetainCycleEx[40294:1601178] Parent.m (init) – init
2015-09-10 17:04:49.290 RetainCycleEx[40294:1601178] Child.m (init) – init
2015-09-10 17:04:52.383 RetainCycleEx[40294:1601178] Parent.m – I’m dealloc…
2015-09-10 17:04:52.383 RetainCycleEx[40294:1601178] Child.m – I’m dealloc..

Objective C stack and heap

September 10, 2015C/C++/Objective-Cblocksadmin

https://mikeash.com/pyblog/friday-qa-2010-01-15-stack-and-heap-objects-in-objective-c.html

Stack

The stack is a region of memory which contains storage for local variables, as well as internal temporary values and housekeeping.
On a modern system, there is one stack per thread of execution.
When a function is called, a stack frame is pushed onto the stack, and function-local data is stored there.
When the function returns, its stack frame is destroyed.

Heap

The heap is, essentially, everything else in memory.

Memory can be allocated on the heap at any time, and destroyed at any time.
You have to explicitly request for memory to be allocated from the heap, and if you aren’t using garbage collection, explicitly free it as well.
This is where you store things that need to outlive the current function call. The heap is what you access when you call malloc and free.

//not using garbage collection

MyClass * ptr = [[MyClass alloc] init];

//...use it...

[ptr release];

ptr = nil;

//using garbage collection such as arc, don't have to do anything

MyClass * ptr = [[MyClass alloc] init];

Stack vs Heap Objects

Given that, what’s a stack object, and what’s a heap object?

First, we must understand what an object is in general. In Objective-C (and many other languages), an object is simply a contiguous blob of memory with a particular layout.

The precise location of that memory is less important. As long as you have some memory somewhere with the right contents, it’s a working Objective-C object. In Objective-C, objects are usually created on the heap:

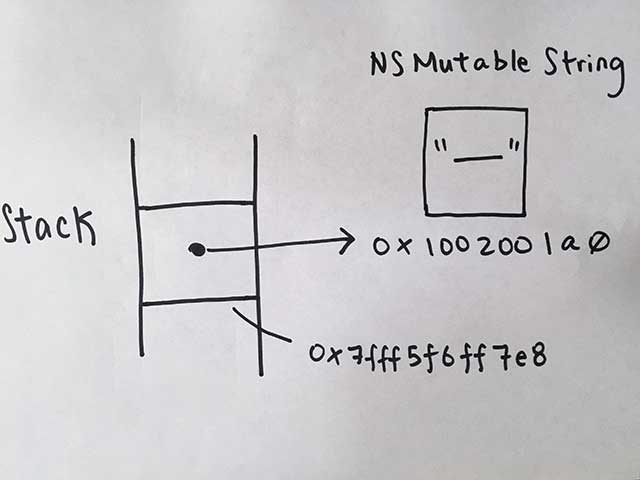

NSObject *obj = [[NSObject alloc] init];

The storage for the obj pointer variable itself is on the stack
but the object it points to is in the heap.
In other words, the obj pointer variable is pushed onto the stack. The NSObject object that it points to, is allocated on the heap

The [NSObject alloc] call allocates a chunk of heap memory, and fills it out to match the layout needed for an NSObject.

Using NS Collection classes with blocks

Since Blocks are objective C objects that gets pushed onto the stack…

A Block is the one instance of an Objective-C object that starts on the stack. While you can happily collect together a bunch of Blocks in one of the Foundation provided collection classes (NSArray, NSDictionary, or NSSet), make sure you copy the Block before you do!

The last thing you want is a stack based object to end up in an autorelease pool….

The reason why Blocks start on the stack is because it is really really fast. Orders of magnitude faster than allocating a chunk of memory for each Block.

other ref-

http://stackoverflow.com/questions/79923/what-and-where-are-the-stack-and-heap

Block basics

September 9, 2015C/C++/Objective-C, iOSadmin

reference
http://stackoverflow.com/questions/22996536/resolving-retain-cycles-is-there-really-a-reason-to-add-strong-strongself-wh?rq=1
http://rypress.com/tutorials/objective-c/blocks

http://www.cocoawithlove.com/2009/10/how-blocks-are-implemented-and.html

demo xCode 7.3

How To Declare

Interface: We have the return type. Then block name. Then the parameters.

Then a equals sign, which leads to our declaration of the block. In the declaration of the block, be sure to name your parameters.

return type (^blockName) ( param type, param type,... ) = ^( type param1, type param2 ) {

// code

};

int (^firstBlock)(NSString *param1, int param2) = ^(NSString * name, int age) {

return 0;

};

non-local variables are variables defined in the block’s enclosing lexical scope, but outside the block itself.

non-local variable are copied and stored with the block as const variable, which means they are read-only.

In other words, it creates “const” copy of any local variables that is referenced inside its scope.

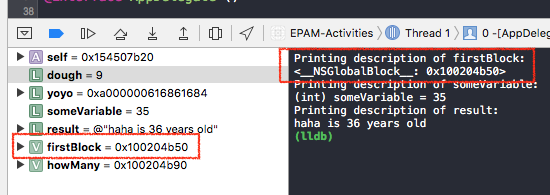

Global Blocks – not referencing any non-local variables

With no references to the surrounding scope, clang configures the Block_literal as a global block instead.

For example,

NSString * (^firstBlock)(NSString *param1, int param2) = ^(NSString * name, int age) {

return [NSString stringWithFormat:@"%@ is %d years old", name, age];

};

If you’re familiar with how Objective-C objects are declared, the isa field in the Block_literal above should be familiar — blocks are Objective-C objects.

As you see, it does not reference any non-local variables. Thus, the compiler creates it as a global block:

This causes the block to appear in a fixed global location instead of on the local stack.

The implication of this is that global blocks are never actually copied or disposed, even if you invoke the functions to do so. This optimization is possible because without any references to the surrounding scope, no part of the block (neither its code nor its Block_literal) will ever change — it becomes a shared constant value.

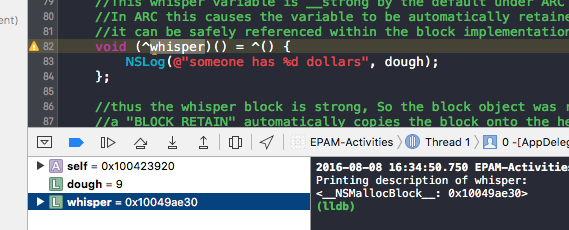

Malloc Blocks – __strong block definitions

void (^whisper)() = ^() {

NSLog(@"someone has %d dollars", dough);

};

The block object was retained by the whisper variable. The strong sends a retain to the block. When a block is retained, it invokes a copy on it.

block implementation detail:

id objc_retainBlock(id x) {

return (id)_Block_copy(x);

}

Thus, the block object was moved from stack to heap by this _Block_copy. But note that there is only still 1 copy of the block. It simply increases the retain count of the block.

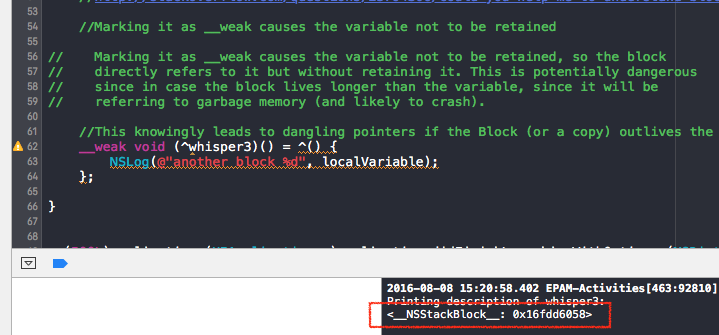

Stack Blocks – __weak block definitions

http://stackoverflow.com/questions/25794306/could-you-help-me-to-understand-block-types-when-added-to-containers-nsdictiona

http://stackoverflow.com/questions/19227982/using-block-and-weak

Marking it as __weak causes the whisper variable to NOT retain the block object.
Thus, the block starts off being allocated on the local stack, and it stays there. Since there is no __strong to retain it, and thus, no copy.

therefore, a weak block variable on a block object keeps the block object on the local stack.

//This knowingly leads to dangling pointers if the Block (or a copy) outlives the lifetime of this object.

__weak void (^whisper3)() = ^() {

NSLog(@"another block %d", localVariable);

};

If you copy an NSStackBlock, it will return an NSMallocBlock (indicating its changed allocation location).

A block keeps it’s own array of its non-local variables via deep copy

example:

int main(int argc, const char * argv[])

{

NSString *make = @"Honda"; //non-local variable

NSString *(^getFullCarName)(NSString *) = ^(NSString *model) {

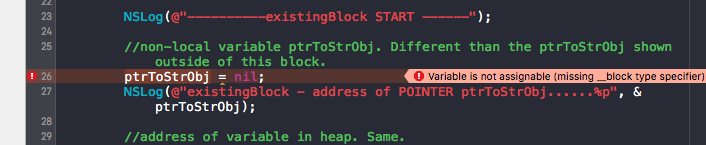

//make = nil; //Trying to assign new value to the make variable

// from inside the block will throw a compiler error.

//Non-local variables are COPIED (deep copy) and stored with

//the block as const variables (cannot be changed), which means they are read-only.

//The fact that non-local variables are copied as constants means that a

//block doesn’t just have access

//to non-local variables—it creates a snapshot of them.

return [make stringByAppendingFormat:@" %@", model];

};

NSLog(@"%@", getFullCarName(@"Accord")); // Honda Accord

make = @"BMW";

NSLog(@"%@", make); //BMW

NSLog(@"%@", getFullCarName(@"Civic")); // Honda Civic

}

So as you can see, the non-local variable make gets copied inside of the block getFullCarName. If you try to modify make inside of the block getFullCarName, you will see a compiler error.

Notice how later, outside of the block, we change the variable make to “BMW”. However, its a deep copy, this change takes place at the outside of the closure. Hence the original make variable (outside of the closure) is BMW. The copy inside the block, the make is still Honda. We see this happening by passing @”Civic” into getFullCarName(…).

You can make non-local changeable by using __block to use them as reference

Freezing non-local variables as constant values is a safe default behavior
in that it prevents you from accidentally changing them from within the block;
however, there are occasions when this is NOT desirable.

You can override the const copy behavior by declaring a non-local variable with the __block storage modifier:

1	__block NSString *make = @"Honda";

This tells the block to capture the variable by reference, whereas if you didn’t have __block, it would capture it by deep copy.

When the block captures the variable by reference, its like creating a direct link between the variable outside the block and the one inside the block.
You can now assign a new value to make from outside the block, and it will be reflected in the block, and vice versa.

__block int i = 0;

int (^count)(void) = ^ {

i += 1;

return i;

};

NSLog(@"%d", count()); // 1

NSLog(@"%d", ++i); //2

NSLog(@"%d", count()); // 3

NSLog(@"%d", ++i); //4

NSLog(@"%d", count()); // 5

So now, you are referencing the same variable outside and inside the block. Whereas before, you have 2 deep copies of the variable depending on whether you are outside or inside of the closure.

Each block has its own copy of the non-local variables

In the example below, if we call existingBlock or vv twice, you will see that the non-blocking variables that they copy will have the same address. Their local variables, however, are all different throughout the calls. That’s because for the local variables of the block, they just go on the stack. Where as the outside scope’s variable are all copied….in an array for that particular block.

void foo(int param)

{

int x0 = param; //stack local variable, blocks will have their own copy of this variable

int x1 = param + 1; //stack local variable, blocks will have their own copy of this variable

void (^existingBlock)(void) = ^{

NSLog(@"----------existingBlock START ------");

int y0 = 8;

int y1 = 88;

printf("existingBlock: local variable y0 address is %p\n", &y0); //existingBlock local variable

printf("existingBlock: local variable y1 address %p\n", &y1); //existingBlock local variable

printf("existingBlock non-local x0 address %p\n", &x0); //existingBlock non-local variable copy

printf("existingBlock non-local x1 address %p\n", &x1); //existingBlock non-local variable copy

NSLog(@"----------existingBlock END ------");

};

void (^vv)(void) = ^{

NSLog(@"----------vv START ------");

int y2 = 888;

int y3 = 8888;

existingBlock();

printf("vv: local variable y2 address is %p\n", &y2); //vv's local variable

printf("vv: local variable y3 address is %p\n", &y3); //vv's some local variable

printf("vv: non-local variable x0 address is %p\n", &x0); //vv's non-local variable copy

printf("vv: non-local variable x1 address is %p\n", &x1); //vv's non-local variable copy

NSLog(@"----------vv END ------");

};

NSLog(@"Stack: &x: %p, %u \n", &x0, x0);

NSLog(@"Stack: &x: %p, %u \n", &x1, x1);

NSLog(@"------- on main thread -------\n");

vv();

dispatch_async(dispatch_get_global_queue(0, 0), ^{

NSLog(@"THREAD 2 start");

assert(vv);

sleep(1);

int y4 = 6680;

int y5 = 6868;

vv();

printf("dispatch async local variable y4 address: %p\n", &y4);

printf("dispatch async local variable y5 address: %p\n", &y5);

printf("non-local variable x0 address: %p\n", &x0); //block's non-local variable

printf("non-local variable x1 address: %p\n", &x1); //block's non-local varaible

NSLog(@"THREAD 2 done");

});

}

int main(int argc, const char * argv[])

{

@autoreleasepool {

foo(1);

sleep(2);

}

return 0;

}

But what about Object allocations

As show in the code above, we have a block called vv. vv calls existingBlock block.
Then, say we have an object allocation outside of the block existingBlock at the highest scope at foo function.

We have 2 parts:

1) the reference ptrToStrObj gets pushed onto the local stack,
with address say: 0x7fff5fbff708

2) and the object that’s allocated on the heap, pointed to by reference ptrToStrObj. The object has address say: 0x100102450

LOCAL – address of POINTER ptrToStrObj……0x7fff5fbff708
LOCAL – address of NSString object on heap……0x100102450

The ptrToStrObj variable is a non-local variable, which means it defined in the block’s enclosing lexical scope, but OUTSIDE of the block itself. It is deep copied inside of the block.

We display the address of the the reference ptrToStrObj inside of the block existingBlock, which then shows:

———-existingBlock START ——
existingBlock – address of POINTER ptrToStrObj……0x1020001c0
existingBlock – address of OBJECT……0x100102450
existingBlock – ricky tsao, dob 6680
———-existingBlock END ——

As you can see, the address of the object on the heap remains at 0x100102450.
But the pointer of the reference ptrToStrObj has changed from 0x7fff5fbff708 to 0x1020001c0.

That is proof that the block made a deep copy of the non-local variable reference ptrToStrObj for itself.

Furthermore, if you try to modify ptrToStrObj, it will throw an error:

After calling existingBlock(), we move on to the next line:

changing content of string object
vv – address of POINTER ptrToStrObj……0x102000248
vv – address of OBJECT……0x100102450
vv – HA DO KEN!ao, dob 6680
———-vv END ——

Keep in mind that we are now back in bloc vv.

As you can see, the address of the object in the heap remains the same at 0x100102450.
However, the pointer address changed to 0x102000248. This means that this block vv has its own DEEP COPY of the non-local variable ptrToStrObj.

Thus,

foo’s ptrToStrObj is 0x7fff5fbff708
existingBlock’s ptrToStrObj is 0x1020001c0
vv’s ptrToStrObj is 0x102000248

In much deeper details, each block has an non-local variable array list. That’s where it keeps its list of non-local variables. As we can see in the picture vv block and existingBlock each have an array of non-local variables.

The first item in their array is reference ptrToStrObj. ptrToStrObj points to the object in the heap, which never changes as we can see that the addresses all match.

However the address of the references are different, because each block has their own DEEP COPY of the reference.

Finally, let’s see what happens inside of a GCD block:

dispatch_async(dispatch_get_global_queue(0, 0), ^{

NSLog(@"THREAD 2 start");

assert(vv);

sleep(1);

vv();

NSLog(@"in dispatch_async block - address of POINTER ptrToStrObj......%p", &ptrToStrObj);

NSLog(@"existingBlock - %@", ptrToStrObj);

NSLog(@"existingBlock - address of OBJECT......%p", ptrToStrObj);

NSLog(@"THREAD 2 done");

});

THREAD 2 start
———-vv START ——
———-existingBlock START ——
existingBlock – address of POINTER ptrToStrObj……0x1020001c0
existingBlock – address of OBJECT……0x100102450
existingBlock – HA DO KEN!ao, dob 6680
———-existingBlock END ——
changing content of string object
vv – address of POINTER ptrToStrObj……0x102000248
existingBlock – address of OBJECT……0x100102450
existingBlock – HA DO KEN!N!ao, dob 6680
———-vv END ——
in dispatch_async block – address of POINTER ptrToStrObj……0x100500048
existingBlock – HA DO KEN!N!ao, dob 6680
existingBlock – address of OBJECT……0x100102450
THREAD 2 done

As you can see the object in the heap as address 0x100102450 for all blocks

existingBlock’s ptrToStrObj has 0x1020001c0
vv’s ptrToStrObj has 0x102000248
GCD’s ptrToStrObj has 0x100500048

Hence, as you can see, GCD’s block, like any other blocks, also have its own non-local variable list, and DEEP COPIES the non-local variable reference ptrToStrObj for itself.

Code

void foo(int param)

{

int x0 = param; //stack local variable, blocks will have their own copy of this variable

int x1 = param + 1; //stack local variable, blocks will have their own copy of this variable

NSMutableString * ptrToStrObj = [[NSMutableString alloc] initWithFormat:@"ricky tsao, dob %u", 6680];

NSLog(@"LOCAL - address of POINTER ptrToStrObj......%p", &ptrToStrObj);

NSLog(@"LOCAL - address of NSString object on heap......%p", ptrToStrObj);

void (^existingBlock)(void) = ^{

NSLog(@"----------existingBlock START ------");

NSLog(@"existingBlock - address of POINTER ptrToStrObj......%p", &ptrToStrObj);

NSLog(@"existingBlock - address of OBJECT......%p", ptrToStrObj);

NSLog(@"existingBlock - %@", ptrToStrObj);

NSLog(@"----------existingBlock END ------");

};

void (^vv)(void) = ^{

NSLog(@"----------vv START ------");

existingBlock();

NSLog(@"changing content of string object");

[ptrToStrObj replaceCharactersInRange:NSMakeRange(0, 8) withString:@"HA DO KEN!"];

NSLog(@"vv - address of POINTER ptrToStrObj......%p", &ptrToStrObj);

NSLog(@"existingBlock - address of OBJECT......%p", ptrToStrObj);

NSLog(@"existingBlock - %@", ptrToStrObj);

NSLog(@"----------vv END ------");

};

NSLog(@"Stack: &x: %p, %u \n", &x0, x0);

NSLog(@"Stack: &x: %p, %u \n", &x1, x1);

NSLog(@"------- on main thread -------\n");

vv();

dispatch_async(dispatch_get_global_queue(0, 0), ^{

NSLog(@"THREAD 2 start");

assert(vv);

sleep(1);

vv();

NSLog(@"in dispatch_async block - address of POINTER ptrToStrObj......%p", &ptrToStrObj);

NSLog(@"existingBlock - %@", ptrToStrObj);

NSLog(@"existingBlock - address of OBJECT......%p", ptrToStrObj);

NSLog(@"THREAD 2 done");

});

}

int main(int argc, const char * argv[])

{

@autoreleasepool {

foo(1);

sleep(2);

}

return 0;

}

output:

LOCAL – address of POINTER ptrToStrObj……0x7fff5fbff7e8
LOCAL – address of NSString object on heap……0x100211f00
Stack: &x: 0x7fff5fbff7f8, 1
Stack: &x: 0x7fff5fbff7f4, 2
——- on main thread ——-
———-vv START ——
existingBlock – address of POINTER ptrToStrObj……0x1001001e0
existingBlock – address of OBJECT……0x100211f00
existingBlock – ricky tsao, dob 6680
———-existingBlock END ——
changing content of string object
vv – address of POINTER ptrToStrObj……0x100300378
existingBlock – address of OBJECT……0x100211f00
existingBlock – HA DO KEN!ao, dob 6680
———-vv END ——
THREAD 2 start
———-vv START ——
———-existingBlock START ——
existingBlock – address of POINTER ptrToStrObj……0x1001001e0
existingBlock – address of OBJECT……0x100211f00
existingBlock – HA DO KEN!ao, dob 6680
———-existingBlock END ——
changing content of string object
vv – address of POINTER ptrToStrObj……0x100300378
existingBlock – address of OBJECT……0x100211f00
existingBlock – HA DO KEN!N!ao, dob 6680
———-vv END ——
in dispatch_async block – address of POINTER ptrToStrObj……0x100300168
existingBlock – HA DO KEN!N!ao, dob 6680
existingBlock – address of OBJECT……0x100211f00
THREAD 2 done

More Examples

GCD: dispatch_async

Contrary to what’s usually believed, dispatch_async per se will NOT cause a retain cycle

dispatch_async(queue, {

self.doSomething();

});

Here, the closure has a strong reference to self, but the instance of the class (self) does not have any strong reference to the closure, so as soon as the closure ends, it will be released, and so no cycle will be created. However, sometimes it’s (incorrectly) assumed that this situation will lead to a retain cycle.

Syntax

Blocks are declared like so:

NSString *(^getFullCarName)(NSString *) = ^(NSString *model) {

};

..and used like so:

1	NSLog(@"%@", getFullCarName(@"Accord"));

This example declares a variable called simpleBlock to refer to a block that takes no arguments and doesn’t return a value

void (^simpleBlock)(void);

simpleBlock = ^{

NSLog(@"This is a block");

};

You can also combine the variable assignment, and definition:

void (^simpleBlock)(void) = ^{

NSLog(@"This is a block");

};

Another Example

1	- (void)beginTaskWithCallbackBlock:(void (^)(void))callbackBlock;

The (void (^)(void)) specifies that the parameter is a block that doesn’t take any arguments or return any values. The implementation of the method can invoke the block in the usual way:

- (void)beginTaskWithCallbackBlock:(void (^)(void))callbackBlock {

...

callbackBlock();

}

Method parameters that expect a block with one or more arguments are specified in the same way as with a block variable:

- (void)doSomethingWithBlock:(void (^)(double, double))block {

...

block(21.0, 2.0);

}

it expects a block that does not return anything. But takes in double as the first 2 parameters.

calling method on a nil object

September 7, 2015C/C++/Objective-Cadmin

A message sent to a nil object is perfectly acceptable in Objective-C, it’s treated as a no-op. There is no way to flag it as an error because it’s not an error, in fact it can be a very useful feature of the language.

From the docs:

Sending Messages to nil

In Objective-C, it is valid to send a message to nil—it simply has no effect at runtime. There are several patterns in Cocoa that take advantage of this fact. The value returned from a message to nil may also be valid:

If the method returns an object, then a message sent to nil returns 0 (nil), for example:

Person *motherInLaw = [[aPerson spouse] mother];

If aPerson’s spouse is nil, then mother is sent to nil and the method returns nil.

If the method returns any pointer type, any integer scalar of size less than or equal to sizeof(void*), a float, a double, a long double, or a long long, then a message sent to nil returns 0.

If the method returns a struct, as defined by the Mac OS X ABI Function Call Guide to be returned in registers, then a message sent to nil returns 0.0 for every field in the data structure. Other struct data types will not be filled with zeros.

If the method returns anything other than the aforementioned value types the return value of a message sent to nil is undefined.

Fast Enumeration

September 7, 2015C/C++/Objective-Cadmin

for(BBT * bbtTimeTemp in arrayOfBBTs) {

}

for(NSString *aString in array) {

NSLog(@"Value: %@",aString);

}

pointers (C) vs references (Java)

August 25, 2015C/C++/Objective-Cadmin

ref – http://programmers.stackexchange.com/questions/141834/how-is-a-java-reference-different-from-a-c-pointer

References might be implemented by storing the address. Usually Java references will be implemented as pointers, but that’s not required by the specification. They may be using an additional layer of indirection to enable easier garbage collection. But in the end it will (almost always) boil down to (C-style) pointers being involved in the implementation of (Java-style) references.

You can’t do pointer arithmetic with references. The most important difference between a pointer in C and a reference in Java is that you can’t actually get to (and manipulate) the underlying value of a reference in Java. In other words: you can’t do pointer arithmetic.

In C you can add something to a pointer (i.e. the address) or substract something to point to things that are “nearby” or point to places that are at any place.

In Java, a reference points to one thing and that thing only. You can make a variable hold a different reference, but you can’t just ask it to point to “the thing after the original thing”.

References are strongly typed. Another difference is that the type of a reference is much more strictly controlled in Java than the type of a pointer is in C. In C you can have an int* and cast it to a char* and just re-interpret the memory at that location. That re-interpretation doesn’t work in Java: you can only interpret the object at the other end of the reference as something that it already is (i.e. you can cast a Object reference to String reference only if the object pointed to is actually a String).

Those differences make C pointers more powerful, but also more dangerous. Both of those possibilities (pointer arithmetic and re-interpreting the values being pointed to) add flexibility to C and are the source of some of the power of the language. But they are also big sources of problems, because if used incorrectly they can easily break assumptions that your code is built around. And it’s pretty easy to use them incorrectly.

dynamic binding vs static binding

July 28, 2015C/C++/Objective-Cadmin

ref -http://www.tutorialspoint.com/objective_c/objective_c_dynamic_binding.htm

Dynamic binding is determining the method to invoke at runtime instead of at compile time. Dynamic binding is also referred to as late binding.

In Objective-C, all methods are resolved dynamically at runtime, due to having every class must derive from NSObject. The exact code executed is determined by both the method name (the selector) and the receiving object. On the other hands, functions such as NSLog or abs, fabs, etc are statically bound. They are determined during compile time.

Dynamic binding enables polymorphism. For example, consider a collection of objects including Rectangle and Square. Each object has its own implementation of a printArea method.

In the following code fragment, the actual code that should be executed by the expression [anObject printArea] is determined at runtime. The runtime system uses the selector for the method run to identify the appropriate method in whatever class of anObject turns out to be.

Parent class – Shape

@interface Shape : NSObject

{

}

@end

@implementation Shape

@end

Child class Square

@interface Square: Shape

{

float area;

}

- (void)calculateAreaOfSide:(CGFloat)side;

- (void)printArea;

@end

@implementation Square

- (void)calculateAreaOfSide:(CGFloat)side

{

area = side * side;

}

- (void)printArea

{

NSLog(@"The area of square is %f",area);

}

@end

Child class – Rectangle

@interface Rectangle: Shape

{

float area;

}

- (void)calculateAreaOfLength:(CGFloat)length andBreadth:(CGFloat)breadth;

- (void)printArea;

@end

@implementation Rectangle

- (void)calculateAreaOfLength:(CGFloat)length andBreadth:(CGFloat)breadth

{

area = length * breadth;

}

- (void)printArea

{

NSLog(@"The area of Rectangle is %f",area);

}

@end

Main

int main()

{

Square *square = [[Square alloc]init];

[square calculateAreaOfSide:10.0];

Rectangle *rectangle = [[Rectangle alloc]init];

[rectangle calculateAreaOfLength:10.0 andBreadth:5.0];

//we put the child classes in an array

NSArray *shapes = [[NSArray alloc]initWithObjects: square, rectangle,nil];

//if then use generic class pointer for them and access printArea method, it will dynamically

//bind to the correct printArea

Shape * object1 = [shapes objectAtIndex:0];

[object1 printArea];

Shape * object2 = [shapes objectAtIndex:1];

[object2 printArea];

return 0;

}

Now when we compile and run the program, we will get the following result.

2013-09-28 07:42:29.821 demo[4916] The area of square is 100.000000
2013-09-28 07:42:29.821 demo[4916] The area of Rectangle is 50.000000

The parent class pointer will know which method to execute because it will dynamically bind the correct method to the object at hand. Note that we can also do it with

1 2	id object1 = [shapes objectAtIndex:0]; [object1 printArea];

because id is a generic pointer.

Namely, ff you have a reference that’s of parent type at compile type, you can assign a child type to it at runtime. The behavior of the reference will change to the appropriate type at runtime. A virtual table lookup will be done to let the runtime figure out what the dynamic type is.

Another exaplantion:

Dynamic binding – This is a step beyond late binding where it is left to runtime to determine if the referenced item exists. A simple example in Objective-C:

id anyObject; // this can hold a reference to any Objective-C object

NSUInteger len = [anyObject length]; // TRY to call a method length on the object

// referenced by anyObject. If at runtime this is,

// say, an NSString or NSMutableString value it will

// succeed. However if it is, say, an NSNumber value

// it will FAIL

Like late binding, the actual method that gets called is not determined until runtime; however, unlike late binding, whether such a method exists is also left to runtime. So, unlike both static and late binding, dynamic binding can fail at runtime.

Static Binding

Static, compile time binding is easy. There’s no polymorphism involved. You know the type of the object when you write and compile and run the code. Sometimes a dog is just a dog.

Static binding: is where the item being referred to is determined at compile time. In (Objective-)C(++) a call to a function is statically bound; for example the library functions fabs and NSLog.

Also references to variables are static in these languages; which variable is being referenced is determined completely at compile time. Static binding cannot fail at runtime, it is a compile time error to fail to determine what a statically bound reference refers to.

Core Data part 1 and 2 – data model and data stack

July 28, 2015C/C++/Objective-Ccore dataadmin

DEMO PROJECT

Create a Single Project

name it “CoreDataTut”

We’re going to do everything by scratch so do not check the Core Data box. Leave it blank.

Generate a xcdatamodeld file

Once the project is generated, look at your list view on the left side. We need a .xcdatamodeld file, which represents the model diagram of our entities. The reason why is because core data code need to use a .xcdatamodeld to initialize a Managed object Model, which it uses to save state and data.

See how to create a data model here

In our core data stack, we actually load this file into an NSManagedObjectModel object.
Make sure that the name of your data model . xcdatamodeld file matches that of the name you use in your code. We do this by using global #define as noted in the code below.

The core data stack

First we make a singleton object out of Core data’s basics by creating a singleton class that houses

NSManagedObjectContext
NSManagedObjectModel
NSPersistentStoreCoordinator

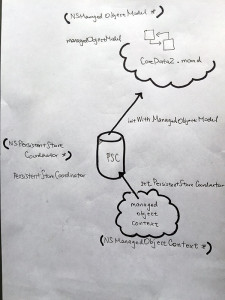

From a picture perspective, core data’s basic parts are connected like this:

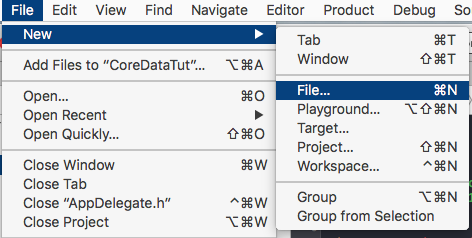

Create the source file:

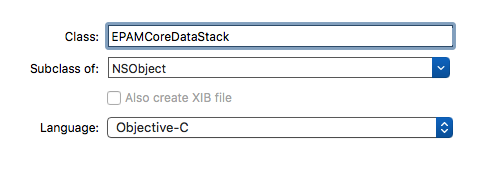

Click on Cocoa Touch Class, and input “THCoreDataStack”. The subclass should be “NSObject”.

THCoreDataStack.h source

#import <Foundation/Foundation.h>

#import <CoreData/CoreData.h>

@interface THCoreDataStack : NSObject

{

}

+(instancetype) defaultStack; //instantiations of self MUST accesses this class method.

//no other instantiations of this method is possible. Thus we ensure 1 entry point.

//public

@property (readonly, strong, nonatomic) NSManagedObjectContext *managedObjectContext;

@property (readonly, strong, nonatomic) NSManagedObjectModel *managedObjectModel;

@property (readonly, strong, nonatomic) NSPersistentStoreCoordinator *persistentStoreCoordinator;

- (void)saveContext;

- (NSURL *)applicationDocumentsDirectory;

-(void)hadoken;

@end

THCoreDataStack.m

#import <CoreData/CoreData.h>

#import "THCoreDataStack.h"

#define SQL_FILENAME @"Model.sqlite"

#define MOMD_NAME @"Model"

@implementation THCoreDataStack

@synthesize managedObjectContext = _managedObjectContext;

@synthesize managedObjectModel = _managedObjectModel;

@synthesize persistentStoreCoordinator = _persistentStoreCoordinator;

-(void)hadoken

{

NSLog(@"HA DOOOO KEN! address of defaultStack - %p", self);

}

+(instancetype)defaultStack {

//all instantiations of THCoreDataStack, will access this method

//we use this one and only statick variable

static THCoreDataStack * defaultStack;

NSLog(@"address of defaultStack - %p", defaultStack);

if(!defaultStack) {

static dispatch_once_t onceToken;

dispatch_once(&onceToken, ^{

//here, code gets executed once

//hence we alloc our one and only defaultStack variable once

defaultStack = [[self alloc] init];

NSLog(@"ALLOC defaultStack on GCD - %p", defaultStack);

});

}

return defaultStack;

}

- (NSURL *)applicationDocumentsDirectory {

return [[[NSFileManager defaultManager] URLsForDirectory:NSDocumentDirectory inDomains:NSUserDomainMask] lastObject];

}

Managed Object Model

The lazy loading and getter method of our MOM.

http://stackoverflow.com/questions/10579767/why-the-extension-is-momd-but-not-xcdatamodel-when-search-the-path-for-the-m

The mom and momd files are compiled versions of xcdatamodel and xcdatamodeld files…so here we’re just saying that we need to allocate a NSManagedObjectModel object and init with the compiled versions of our xcdatamodeld files.

- (NSManagedObjectModel *)managedObjectModel {

// The managed object model for the application. It is a fatal error for the application not to be able to find and load its model.

if (_managedObjectModel != nil) {

return _managedObjectModel;

}

NSURL *modelURL = [[NSBundle mainBundle] URLForResource:MOMD_NAME withExtension:@"momd"];

_managedObjectModel = [[NSManagedObjectModel alloc] initWithContentsOfURL:modelURL];

return _managedObjectModel;

}

Basic lazy loading of the PSC, and its getter. When creating the PSC, we use a #define macro for the sql’s file name.

- (NSPersistentStoreCoordinator *)persistentStoreCoordinator {

// The persistent store coordinator for the application. This implementation creates and return a coordinator, having added the store for the application to it.

if (_persistentStoreCoordinator != nil) {

return _persistentStoreCoordinator;

}

// Create the coordinator and store

_persistentStoreCoordinator = [[NSPersistentStoreCoordinator alloc] initWithManagedObjectModel:[self managedObjectModel]];

NSURL *storeURL = [[self applicationDocumentsDirectory] URLByAppendingPathComponent:SQL_FILENAME];

NSError *error = nil;

NSString *failureReason = @"There was an error creating or loading the application's saved data.";

if (![_persistentStoreCoordinator addPersistentStoreWithType:NSSQLiteStoreType configuration:nil URL:storeURL options:nil error:&error]) {

// Report any error we got.

NSMutableDictionary *dict = [NSMutableDictionary dictionary];

dict[NSLocalizedDescriptionKey] = @"Failed to initialize the application's saved data";

dict[NSLocalizedFailureReasonErrorKey] = failureReason;

dict[NSUnderlyingErrorKey] = error;

error = [NSError errorWithDomain:@"YOUR_ERROR_DOMAIN" code:9999 userInfo:dict];

// Replace this with code to handle the error appropriately.

// abort() causes the application to generate a crash log and terminate. You should not use this function in a shipping application, although it may be useful during development.

NSLog(@"Unresolved error %@, %@", error, [error userInfo]);

abort();

}

return _persistentStoreCoordinator;

}

Managed Object Context – scratch pad for DB changes

This MOC is basically a scratch pad for database changes. Later, when you save context, it will be reflected to the Persistent Store Coordinator, and thus, the database.
We have basic lazy loading and get methods for the MOC.

- (NSManagedObjectContext *)managedObjectContext {

// Returns the managed object context for the application (which is already bound to the persistent store coordinator for the application.)

if (_managedObjectContext != nil) {

return _managedObjectContext;

}

NSPersistentStoreCoordinator *coordinator = [self persistentStoreCoordinator];

if (!coordinator) {

return nil;

}

_managedObjectContext = [[NSManagedObjectContext alloc] initWithConcurrencyType: NSPrivateQueueConcurrencyType];

[_managedObjectContext setPersistentStoreCoordinator:coordinator];

return _managedObjectContext;

}

Saving the Context

This method is called right after an Object is returned from the MOC designated to be inserted or changed.

That way the MOC’s changes are safely saved.

#pragma mark - Core Data Saving support

- (void)saveContext {

NSManagedObjectContext *managedObjectContext = self.managedObjectContext;

if (managedObjectContext != nil) {

NSError *error = nil;

if ([managedObjectContext hasChanges] && ![managedObjectContext save:&error]) {

// Replace this implementation with code to handle the error appropriately.

// abort() causes the application to generate a crash log and terminate. You should not use this function in a shipping application, although it may be useful during development.

NSLog(@"Unresolved error %@, %@", error, [error userInfo]);

abort();

}

@end

lazy loading pattern using property and synthesize

July 28, 2015C/C++/Objective-C, iOSadmin

#import "MyClass.h"

@implementation MyClass

//_word is instance variable (ivar)

//word is used in self.word fashion for get/set

@synthesize word = _word;

//you can declare your own custom get/set method like so, which we call an "explicit definition"

//here is where we have our custom lazy load of ivar _word

- (NSString *)word {

if (_word == nil) {

_word = [NSString stringWithFormat:@"some word"];

}

return _word;

}

-(instancetype)init

{

if(self=[super init]) {

//WRONG, compiler will throw error

[word stringByAppendingString:@"aya"];

//access instance variable through synthesized or your own custom get/set methods

[self.word stringByAppendingString:@"6680"];

//access instance variable itself

[_word stringByAppendingString:@""];

}

return self;

}

@end

Protected Methods, Private, and Public (obj c)

July 21, 2015C/C++/Objective-Cadmin

download demo

Protected Methods

Base.h

@interface Base : NSObject

{

}

//declaring public member variables

@property(nonatomic, assign) int publicAge;

@property(nonatomic, strong) NSString* publicName;

-(void)publicMethod ; //declaring a public method

@end

Note, that private attributes are accessible only by the class that declared it. No others can access it. Hence, in our Base class, it declares private attributes and freely uses it. However, in main, only the public attributes appears and can be accessed.

Base.m

#import "Base.h"

@interface Base ()

{

}

//declare private variable

@property(nonatomic) long privateSSN;

-(void)privateMethod; //declare a private method

@end

@implementation Base

//auto-synthesized

-(instancetype)init {

if(self=[super init]) {

//using public

self.publicAge = 34;

self.publicName = @"ricky";

//using private

self.privateSSN = 553972870;

[self privateMethod];

return self;

}

return nil;

}

-(void)publicMethod {

NSLog(@"%@ - calling public method", [self class]);

}

-(void)privateMethod {

NSLog(@"%@ - calling private method", [self class]);

}

@end

Public means anyone can access these variables or methods. This includes the object themselves, as well as other objects.

When you create the Base object, and try to access the public attributes, you will see all the public members and methods we’ve declared.

Private access from other objects

You will not be able to see the private members and methods because you are not allowed access to them. Only the Base class that declared those private attributes can access them.

main.m

Base * person = [[Base alloc] init];

person.publicAge = 24;

person.publicName = @"hadoken";

[person publicMethod];

NSLog(@"done");

Derived Classes

Say we derive a child class from Base.

#import "Base.h"

@interface Child1 : Base

{

}

@end

Child1.m

#import "Child1.h"

@interface Child1 ()

@end

@implementation Child1

-(instancetype)init {

if(self=[super init]) {

//using parent's public varaible

self.publicAge = 34;

self.publicName = @"ricky";

//using parent's public method

[self publicMethod];

//using private

self.privateSSN = 553972870; //ERROR

[self privateMethod]; //ERROR

return self;

}

return nil;

}

@end

When you create a child class and derive it from a base class, you can only use the parent class’ public attributes. You cannot use its private attributes.

In other languages, we’d usually protected. Which is basically private + the ability to let child classes access your private attributes.

Protected Members (iVars)

Base.h

@interface Base : NSObject

{

@protected

NSString * protectedString;

}

@end

Base.m

#import "Base.h"

@interface Base ()

{

}

@end

@implementation Base

-(instancetype)init {

if(self=[super init]) {

NSLog(@"----- BASE INIT start------ ");

NSLog(@"Base.m - iVar protectedString set");

protectedString = @"Base set protectedString";

NSLog(@"----- BASE INIT end ------ ");

return self;

}

return nil;

}

@end

Child.h

#import "Base.h"

@interface Child : Base

{

}

-(void)logProtectedString;

@end

Child.m

#import "Child.h"

@implementation Child

-(instancetype)init {

if(self=[super init]) {

NSLog(@"----- CHILD INIT start ------ ");

NSLog(@"Child: Uses iVar protectedString");

protectedString = @"This child likes to laugh.. haha!";

NSLog(@"----- CHILD INIT end ------ ");

return self;

}

return nil;

}

-(void)logProtectedString {

NSLog(@"Child.m - %@", protectedString);

}

@end

Main

#import "Child.h"

int main(int argc, const char * argv[]) {

@autoreleasepool {

// insert code here...

NSLog(@"Hello, World!");

Child * aKid = [[Child alloc] init];

[aKid logProtectedString];

}

return 0;

}

So basically, Child derives from Base. It access Base’s protected string, changes its content, and logs it. Thus we see

Child.m – This child likes to laugh.. haha!

Which is what we set in the Child class. This is how we use protected variables. However, if we were to use properties, it gets a little bit complicated.

Protected Variables (property)

First, we add properties get/set to our protectedString by doing:

@interface Base : NSObject

{

@protected

NSString * protectedString;

}

@property(nonatomic, strong) NSString * protectedString;

@end

Then synthesize it to generate auto-get/set methods

@interface Base ()

{

}

@end

@implementation Base

@synthesize protectedString;

...

Finally, we implement a custom set method so that we can see how it all works. Put the custom method in your Base.m file:
Base.m

-(void)setProtectedString:(NSString *)newStr {

NSLog(@"Base.m [Calling class %@] - setProtectedString <--", [self class]);

NSLog(@"Base.m - protectedString was: %@", protectedString);

protectedString = newStr;

NSLog(@"Base.m [Calling class %@] - setProtectedString -->", [self class]);

}

Be careful you don’t use self.protectedString because by definition, you’ll go into an infinite loop: You keep accessing your own set method.

In both Child and Base’s init, do self.protectedString. That way, we use and make our properties take into effect.

output:

—– BASE INIT start——
Base.m – iVar protectedString set

Base.m [Calling class Child] – setProtectedString <-- Base.m - protectedString was: (null) Base.m [Calling class Child] - setProtectedString -->

—– BASE INIT end ——
—– CHILD INIT start ——
Uses iVar protectedString

Base.m [Calling class Child] – setProtectedString <-- Base.m - protectedString was: Base set protectedString Base.m [Calling class Child] - setProtectedString -->

—– CHILD INIT end ——
Child.m – This child likes to laugh.. haha!

You will see that Child object in main does its init, which uses Base class’s init. Base class’s init simply uses the self.protectedString property, which calls the custom set method setProtectedString.

The custom set method sees that the iVar protectedString was null, then it gets set to “Base set protectedString”.

The Child’s init runs and using the property self.protectedString. It sees that it as a custom setProtectedString method in its Parent class, and uses that to set the iVar protectedString to a new value.

Over-riding Propert’s custom method

If your Child class wants to use its own custom method, then over-ride the Base class’s custom set method setProtectedString.

Child.m

-(void)setProtectedString:(NSString *)newStr {

NSLog(@"Child.m [Calling class %@] - setProtectedString <--", [self class]);

NSLog(@"Child.m - protectedString was: %@", protectedString);

protectedString = newStr;

NSLog(@"Child.m [Calling class %@] - setProtectedString -->", [self class]);

}

output:

Hello, World!
—– BASE INIT start——
Base.m – iVar protectedString set

Child.m [Calling class Child] – setProtectedString <-- Child.m - protectedString was: (null) Child.m [Calling class Child] - setProtectedString -->
—– BASE INIT end ——

—– CHILD INIT start ——
Child: Uses iVar protectedString

Child.m [Calling class Child] – setProtectedString <-- Child.m - protectedString was: Base set protectedString Child.m [Calling class Child] - setProtectedString -->

—– CHILD INIT end ——
Child.m – This child likes to laugh.. haha!

Take heed that in Base’s init method, the self.protectedString accesses the custom set method in Child as shown in the output. This is because Child over-rode its parent class’s setProtectedString method.

The attribute protectedString still belongs to the Base class. The property generated its get/set in the Base class. But the Child class over-rode the set method, and thus, that’s why in Base’s init, we access the set method in Child.

Protected Methods

we use category in a dedicated header file

Base+Protected.h

#import <Foundation/Foundation.h>

@interface Base(Protected)

- (void)protectedMethod;

@end

Then, import the Base+Protected.h category file into your Base class. Make sure you implement the protected method.

#import "Base.h"

#import "Base+Protected.h"

@interface Base ()

{

}

@end

@implementation Base

@synthesize protectedString;

- (void)protectedMethod {

NSLog(@"%@ -protectedMethod", [self class]);

}

@end

Note that IF we have not imported Base+Protected.h, “protectedMethod” method would be a private method.

Before, we can access parent’s public. If you try to access Base’s protectedMethod, it will see it as trying to access the private of the Base class, and throw an error:

if(self=[super init]) {

//using parent's public method

[self publicMethod];

[self protectedMethod]; //ERROR!

return self;

}

You need to #import “Base+Protected.h”, then you will be able to access the protected method which was attached to the Parent class via Category.

Thus, you just created protected access in objective c

#import "Base+Protected.h"

.....

....

if(self=[super init]) {

//using parent's public method

[self publicMethod];

[self protectedMethod]; //OK!

return self;

}

The import of the category .h file acts as an access to private attributes mechanism. In obj c, we simply use it to give us protected-access behavior.

When you run it, you will see that the Child class calls the Base class.

Without a protected category, there would be no way for subclasses to access this method.

Keep in mind that protected attributes are really meant for child classes to use. It is still private in nature, and should not let global objects access them. They should only be accessed by its parent and anyone who is their children.

Keep in mind that accessing private and over-riding are two different things

In this section, we talk about how to have child objects access parent’s private methods via protected mechanism. However, child objects CAN accidently OVER-RIDE parent private methods:

Private methods in Objective C are semi private
